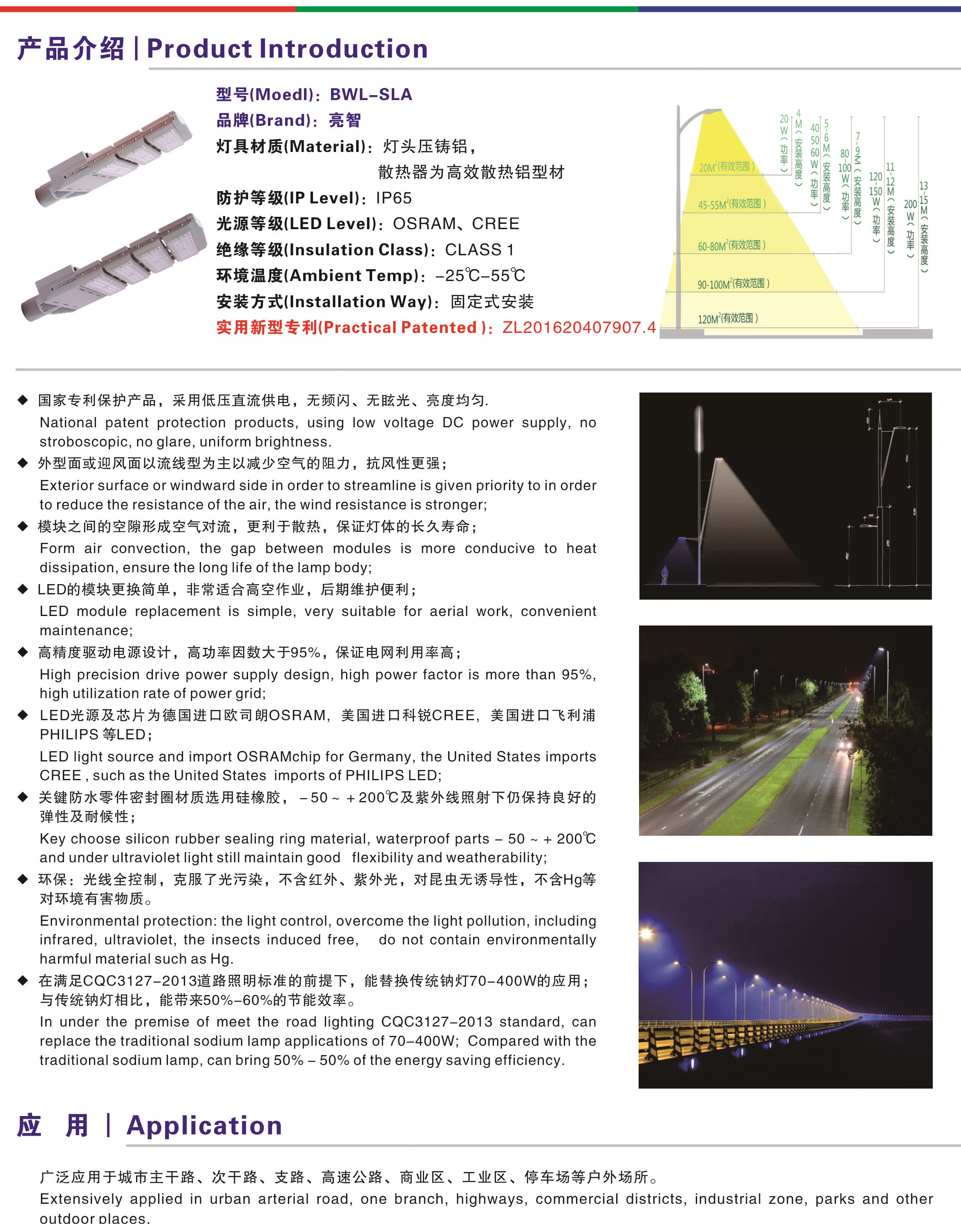

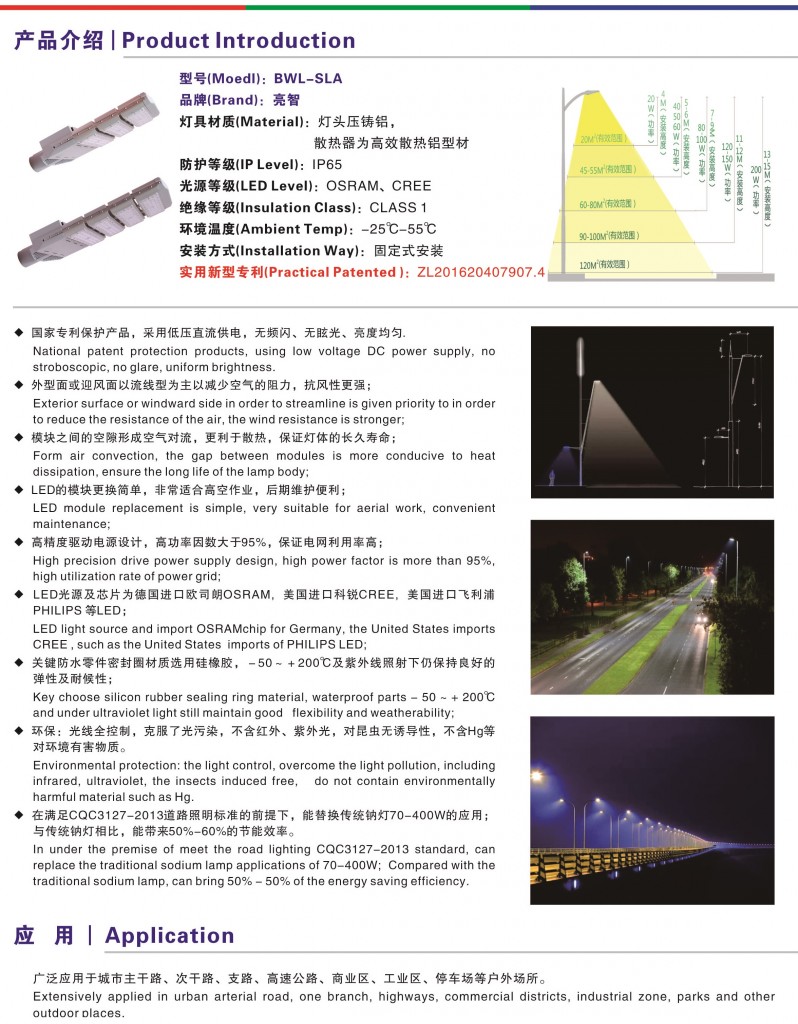

产品名称(Product Name): LED路灯 ∣ LED street light
系统配置 | System Configuration
光源(LED Source)：标配：飞利浦LUMILEDS
可选：CREE、NICHIA、OSRAM、SAMSUNG、BRIDGELUX
LED控制装置(LED Control Device)：标配：亮智（Best Way Light）；
可选：明纬、英飞特、茂硕、飞利浦）

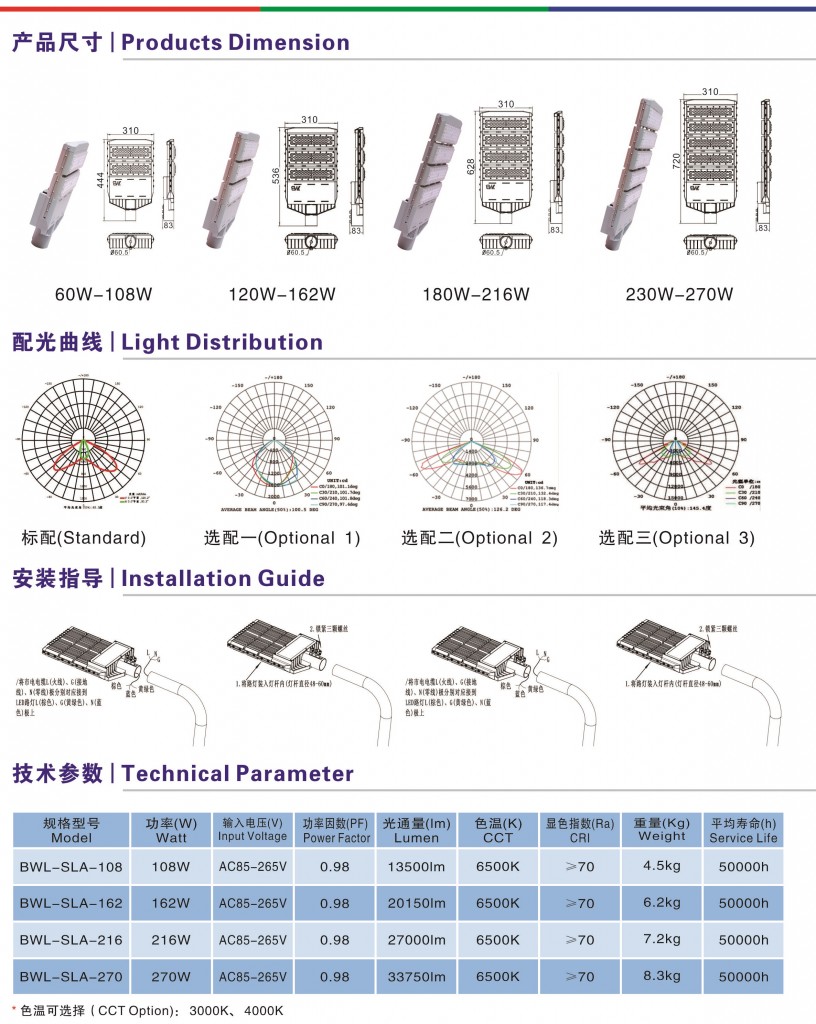

技术参数 | Technical Parameter
宽电压输入 Working Volt：AC85-265V 50/60Hz
功率因数 PF：>0.98
灯具效率 Luminaire Efficiency: >95%
相关色温 CCT: 3000K-6500K
显色指数 CRI: RA>70
初始光效 Initial Luminous Efficiency：125-145lm/W
发光角度 Beam Angle: 80*150°
色温可选：3000K、4000K、5700K
具有防眩光特性的透镜系统和进一步优化了各种照明配光
显色指Ra 5700K >70, 4000K > 70, 3000K > 80

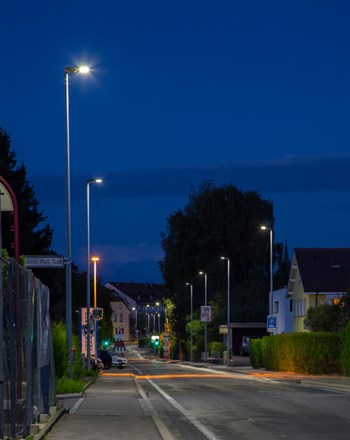

道路照明及景观照明的理想解决方案
控制系统 : 0-5V、0-10V、 DALI、AstroDIM、 DynaDIM 多种调光方式
符合国家标准：GB/T 2423.25-2008, IP67、IP68、IS09001:2015、ISO14001:2015
Lighting application demmostration calculation ( Maintenance Factory 0.8)
| Model | BWL-SLA-80/108 | BWL-SLA-120/162 | BWL-SLA-162/216 | BWL-SLA-200/270 | ||||
| Power | 80W | 120W | 162W | 200W | ||||
| Road type | one-way | one-way | Double way | Double way | ||||
| Road width | 8.0 | 10.0 | 11.25 | 14.0 | ||||
| Lane quality | 2 | 2 | 3 | 4 | ||||
| Luminance coefficient | CIE C2(0.07) | CIE C2(0.07) | CIE C2(0.07) | CIE C2(0.07) | ||||
| Installation | one side | one side | Both sides | Both sides | ||||
| Mouting height | 9.0 | 9.0 | 12.0 | 12.0 | ||||
| Horizontal distance | 30.0 | 30.0 | 36.0 | 36.0 | ||||
| Arm length | 1.0 | 1.0 | 1.0 | 1.0 | ||||
| Elevation | 5° | 5° | 5° | 5° | ||||
| Average brightness | 0.75 | 1.02 | 1.36 | 1.56 | ||||
| Uniformity Uo | 0.88 | 1.13 | 1.37 | 1.34 | ||||
| Uniformity UI | 0.81 | 0.81 | 0.84 | 0.84 | ||||
| Threshold TI% | 9.3 | 9.3 | 9.3 | 9.3 | ||||
| Average lumin(lx) | 12.6 | 18.4 | 21.1 | 21 | ||||
| Uniformity Ratio | 0.62 | 0.60 | 0.53 | 0.64 | ||||
| Surround Ratio | 0.54 | 0.52 | 0.5 | 0.64 | ||||
| Watt Density(W/㎡) | 0.58 | 0.66 | 0.74 | 0.77 | ||||
